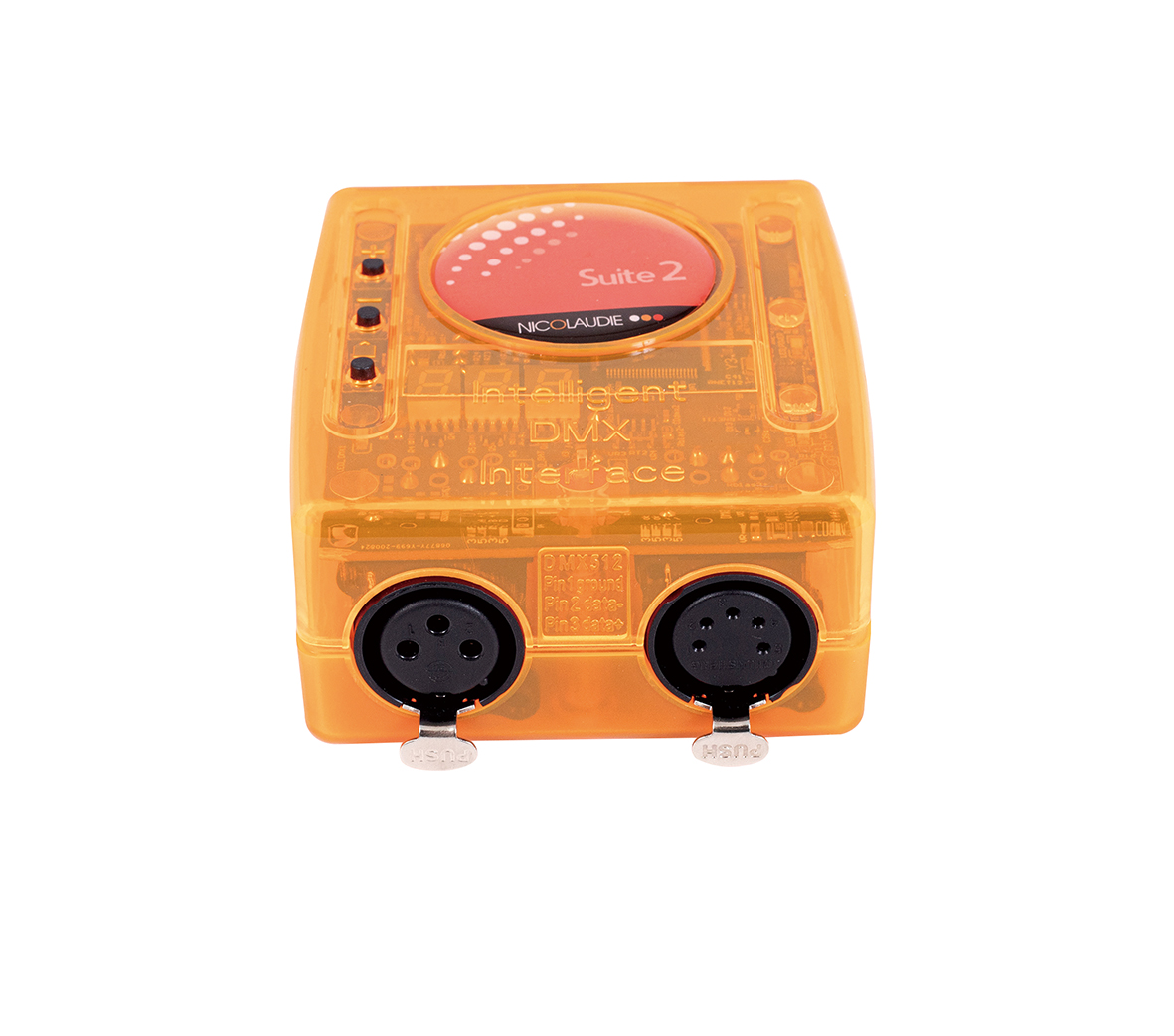

Product Introduction:

1 USB-DMX signal decoding, supports multiple USB-DMX decoding, stable output.

2 has a standard 3 × DMX512 output (1536 channels), using DC/DC power isolation and optoelectronic isolation.

3. Supports the selection of PC working and offline working modes, microcontroller decoding, and external random access memory.

4. Accept DMX512 lighting console control, enter 3D software control through interface, achieve computer 3D effect and on-site synchronization, to achieve synchronous control of video software for the lighting console.

5. Establish a computer 3D stage to achieve real-time display of computer 3D effects synchronized with on-site lighting.

Synchronize audio and lighting effects to create a music show. You can drag and drop, move, and expand on the audio and video time bar to schedule the start and end times of lighting effects.

7. Equipped with memory function storage, it can work in "independent romance" mode and can work independently without a computer.

Create your own lighting fixture data or modify existing lighting fixture data, including all lighting effects such as color, pattern, pattern rotation, prism, etc.

9. Built in intuitive effects and programs with icons, easy to use with just a click of the mouse.

AVI export of 10 3D lighting effects.

11 supports Windows XP/2000/98se/Vista operating systems, with automatic recognition and plug and play functionality.

Very suitable for small and medium-sized performances, entertainment venues, exhibitions, LED lighting control/maintenance use.

Software has been updated:

1 independent mode channel increased to 512

When editing programs in independent mode, there are built-in programs that can be called up for editing.

3. Visible object shape when 3D stage brings up objects

Minimum requirements for computer configuration:

Processor frequency: 800 MHz

256Mb memory (RAM)

Vision card with 32 Mo memory and support for Microsoft Direct 3D

800 × 600 pixel screen

Recommended computer configuration conditions:

Processor frequency: 2 GHz

1 GO memory (RAM)

A video card with 128 Mo of memory and support for Microsoft Direct 3D

1280 × 1024 pixel screen

Requirements for external power supply of USB-DMX decoder during offline operation:

Voltage: 9V~12V DC

Current: not less than 300mA

Polarity:+center

Suggest using power supplies that comply with CE and UL standards
