PRODUCTS

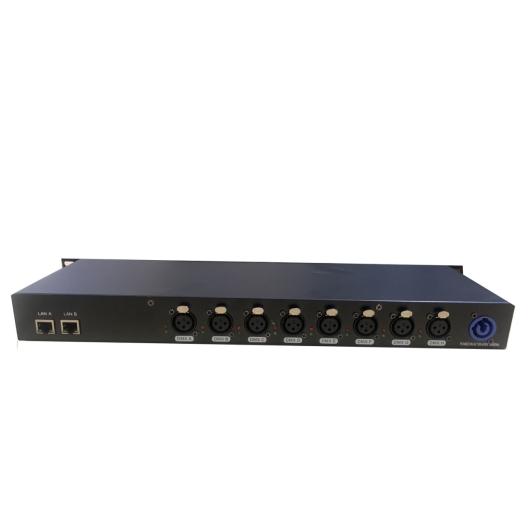

RDM network extender
Support RDM function
Technical parameters:
Network signal: ART NET TCP IP
Number of signal channels: 8 DMX512 outputs and inputs
Working voltage: AC 100V~240V 47/60HZ
Functional features:
1. Independent software development is not a replica
2. The CPU adopts advanced ARM Cortex-m4 technology
3. Each output signal is independently optically isolated, with an isolated power supply of 2000V DC
4. Console that supports all ART NET network protocols, such as Pearl Expert, Touch Tiger, MA, Fliggy, etc
5. Conventional DMX512 signals can be converted into ART NET network signals.
6. The signal output XLR socket adopts the original Swiss NEUTIK three core socket (optional five core socket)
7. The device firmware can be upgraded through a USB flash drive or network
8. System parameters can be set through the LCD screen or network.
9. Aluminum alloy brushed shell, standard 1U 19 inch rack mounted installation
