192

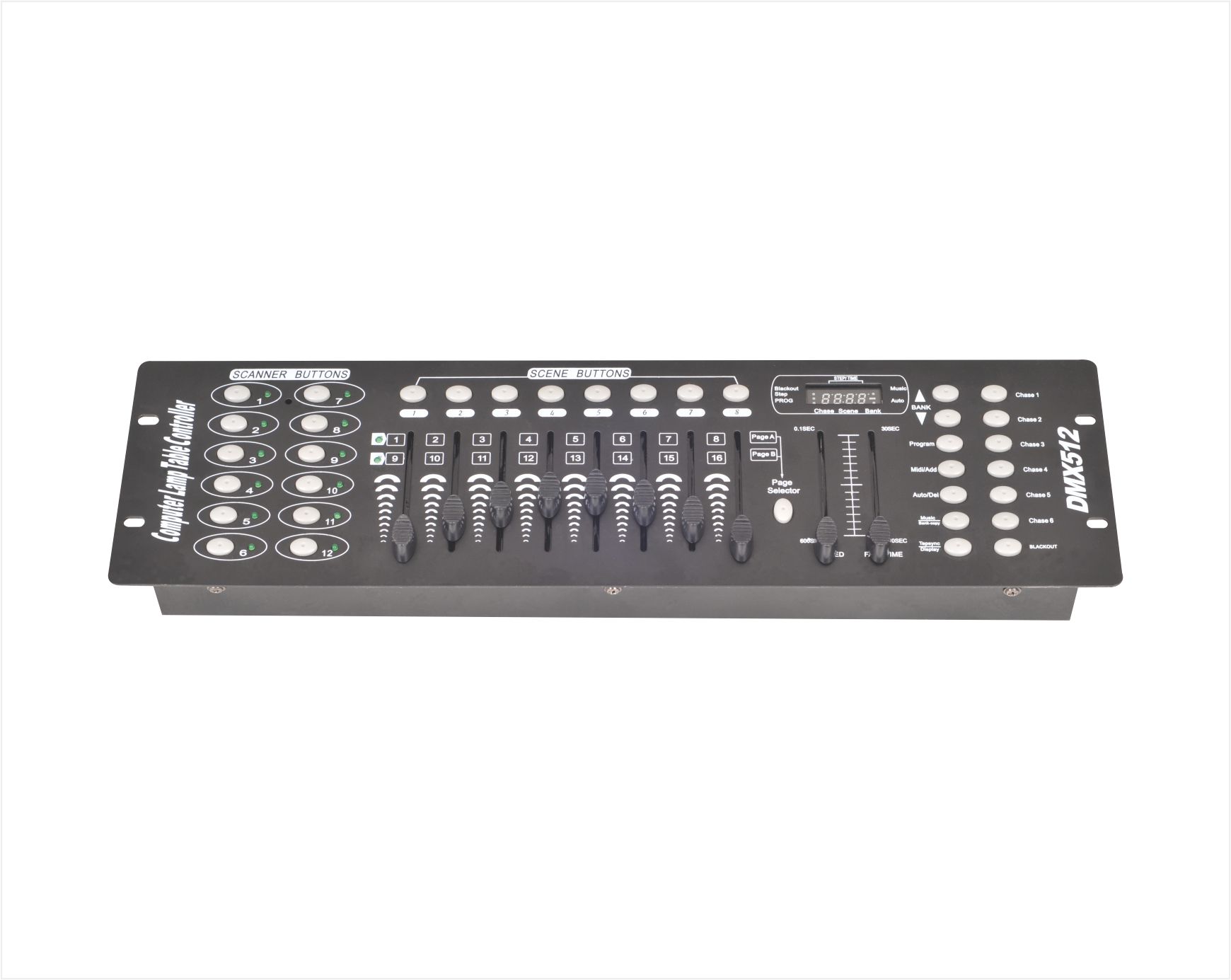

1) This machine is a 192 channel DMX512 signal control panel, which adopts precise CPU processing technology and has a DMX polarity selection switch.
2) There is a MIDI interface, which can be controlled by MIDI signals at any time. It has MIDI triggering, BANK/CHAES, and BANK OUT functions;
3) There are 12 SCANNER, each containing 16 channels, divided into pages A (1-8) and B (9-16)
4) Channel position can be adjusted in micro steps at will, or the operation can be paused and overlapped on pages A and B.
5) Programmable 30 banks, each bank containing 8 programmable SCENCEs
6) When programming, the joystick ＆#118alue can be set when the corresponding LED lights up when the FINE key is pressed.
7) Programmable 6 CHASES can be stacked and run;
8) Each CHASES can be programmed with 240 steps (i.e. 30 bank scenes) and has three operating modes: automatic, manual, and voice control;
9) In automatic operation mode, FADE can choose to have ALL or X/Y. All have SPEED regulation.
10) Assigw (joystick) or Review (inverse) can be set in each SCANNER.
11) Control consoles can transfer internal programmed data to each other and have Black out output function;
12) 8 * 2LCD display with internal backlight for English Chinese display operation steps; Each button is equipped with corresponding LED indicator lights;
13) There is a DC interface, configured with a DC power supply (input AC120V~230V, output DC9~12V 300~500mA).
Size (mm): 610x195x150 1PCS/Package
Weight: 2.5kgS Gross weight: 3.6kg
